42 years ago Jim Stewart bought a 1952 MGTD.  He dissasembled the car with the plans to do a full up restoration.  Then life got in the way.  Now, 42 years later, Jim is going to do a complete the restoration.

<< Previous Page

The last license plate for the MGTD.  Yup, 42 years ago!

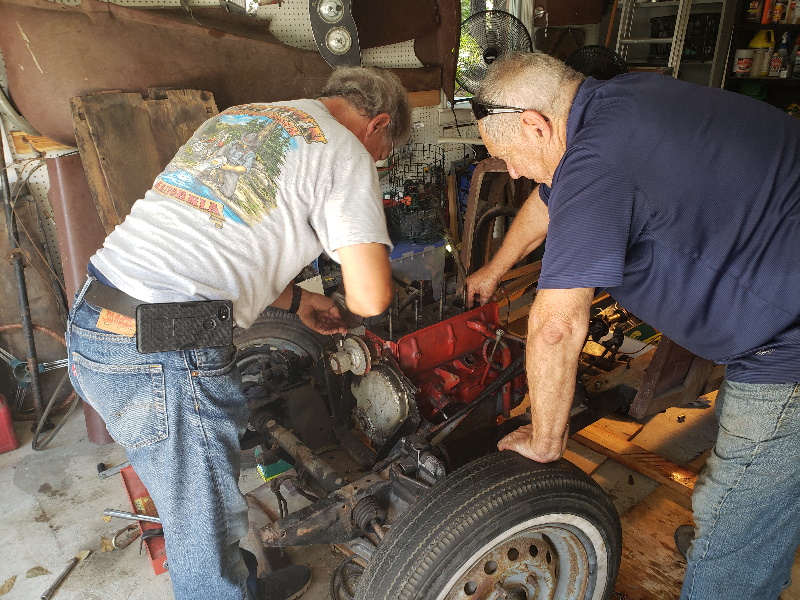

Dave Rosato and Steve Smith needed to take a ride on the Harley's and Dave needed to try to get the engine unseized.  Destination: Jim Stewarts.  Here is Steve positioning a floor jack to support the rear of the engine so the transmission can be removed.

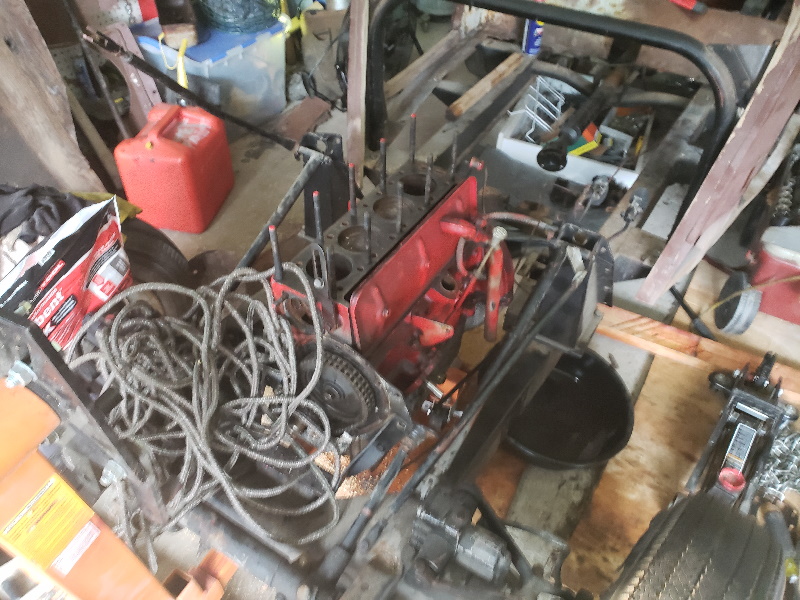

Removed the distributor, starter, generator, transmission, water pump, oil pump and the front cover.  We also drained about two gallons of Mystery oil from the engine.  The camshaft wouldn't rotate either.  Jim bought a come-along to pull the engine.  There is a large beam running across the garage which will be used. So the plan is to remove the oil pan then the camshaft drive sprockets and chain.  Then we can see if either the crankshaft or camshaft will rotate on their own.  We'll be able to see what the crankshaft looks like. If the crankshaft still won't rotate, next will be removing the connecting rod bolts and removing one piston at a time.

ANY SUGGESTIONS ARE HIGHLY APPRECIATED.

8-5-2019 Finished removing the engine (after returning a defective hoist).  The other end of the come-along is connected to a very large eye-hook which is screwed into a very large beam on the ceiling.  Took all external misc stuff off, dropped the pan and tried to remove timing chain!  No Master link and the puller I borrowed wouldn't fit behind the chain.

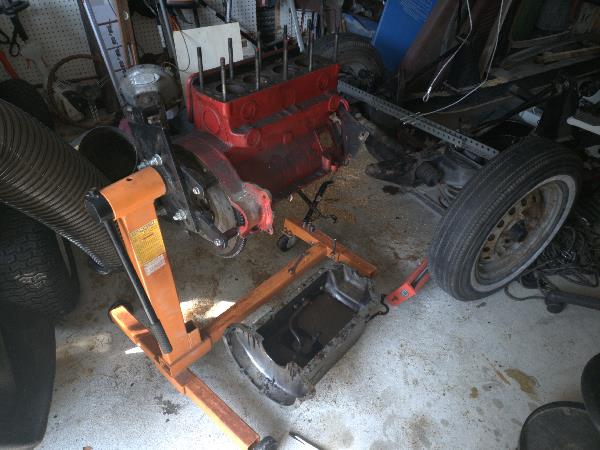

The engine on the stand.  The clutch assembly was removed as well as the oil pan.  When I turned the engine over on stand - water ran out!  Almost 50 yrs old - not exactly potable!!

Above is the crank shaft.  Looks pretty good. It sat in Mystery oil for 42 years.

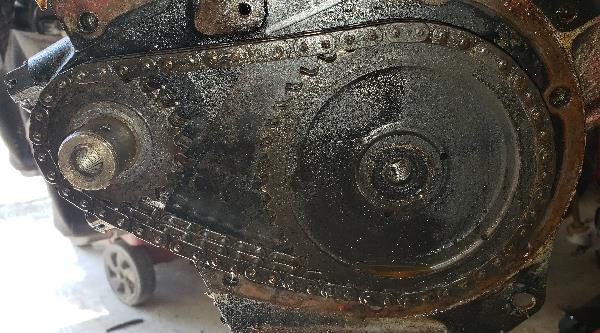

Now the challenge is getting the timing chain and sprockets off.  I borrowed a puller but the arms won't fit behind the chain.  I eventually cut the chain and pulled the sprockets.  They needed to be replaced anyways.

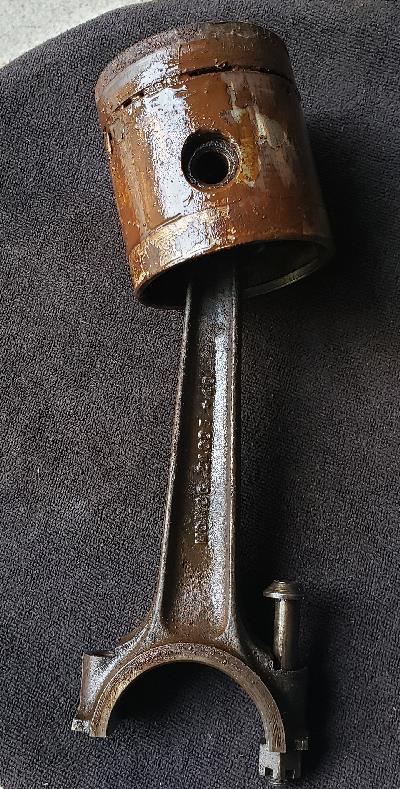

The cam shaft rotated but the crankshaft still wouldn't.  I unbolted all the connecting rods and was able to move pistons 1, 2 and 4, not 3.  With the help of a nice piece of oak I was able to get it out.  Here it is.

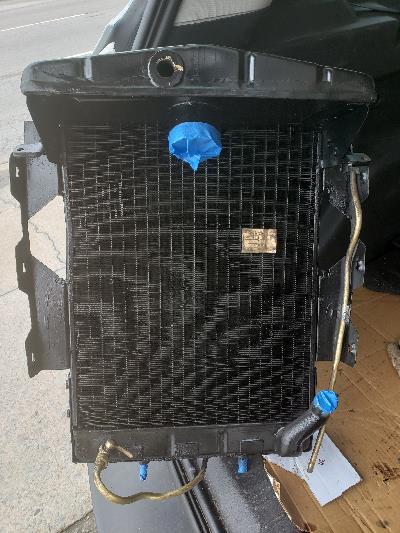

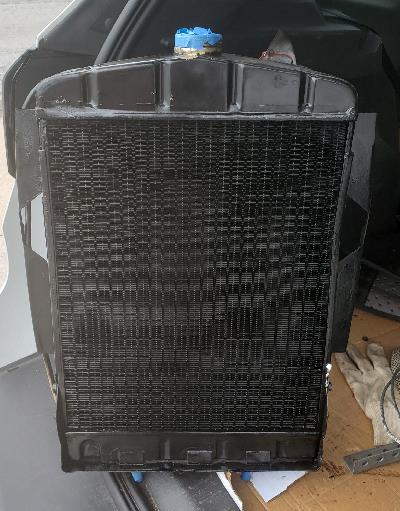

8-16-2019 Port (Cat) City Radiator, AJ & Ed did a great job! Just 2 pinholes - plus they painted it & polished the brass!  Awesome!!

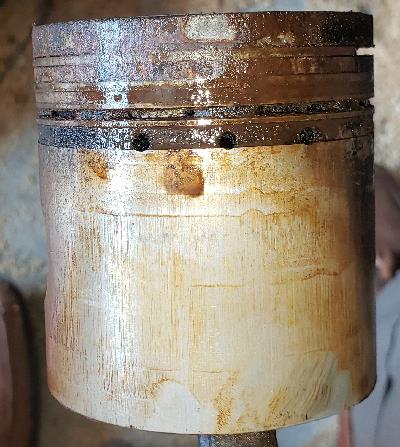

The infamous #3 stuck piston.  Need to pull the rings and clean it a little.
